SUSTAINABLE CONSTRUCTION PANEL
Fireproof and Anti-humidity

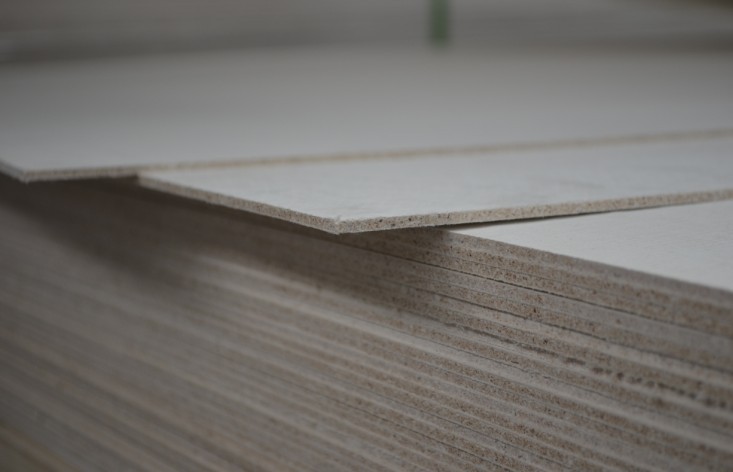

MAGNÉSIOPAN® sustainable construction panel, known as magnesium oxide board. Doesn't burn, and doesn't make any smoke, it is water resistant, harmless and 100% free of asbestos and radiation elements. The board material is processed through an anti-static treatment where fiberglass glass is added to increase the board stability. One side of the board is smooth and the other one is rough for ceramic tiles applying. It has high collision and impact hardness, has no reaction to UV rays and is resistant against halogens.
MAGNÉSIOPAN® magnesium board has many applications in construction. It is a superior solution to ETICS (External thermic insulation composit systems) due to its thermal, acoustic and durability characteristics.
MAGNÉSIOPAN® panels are light and easy to install, cut, mold with common tools, making them ideal for floor, walls, ceiling, soffits, external claddings, skirtings, and other architectural structures that require high mechanical resistance. Magnésiopan panels can also be used in interiors where humidity or water is present instead of plasterboard, which in these cases is inappropriate. Compare the resistance between the mgo board and plasterboard panels (Pladur®)
TECHNICAL INFORMATION
FIRE-RESISTANT
HAS NO INFLAMABILITY: CLASS A1
The Magnesium Oxide Board was tested under European Standard BS EN 12467 -2012, for over 4 hours on a 10mm board
The board is fire-resistant to 1472 ° C and remains without flame at 2192 ° C.
WEATHER RESISTANT
HIGH DURABILITY
Resistant to deformation in hot, dry and humid conditions with a deformation rate of 0.26%
Can be used at - 40°C.
WATERPROOF
Anti-Humidity
The magnesium oxide board remains intact after being immersed in water for one month, the phenomenon of swelling and alteration of its shape has not occurred.
It does not disintegrate when immersed in water or exposed to freezing for a long period of time.
ACCOUSTIC INSULATION
YOUR HOUSE WILL BE MORE SILENT
Certified under the ISO 9001 standard, its verified that sound insulation, made from magnesium plates, is superior to a conventional wall, between 44dB and 47dB.
In addition to an excellent acoustic insulation, the magnesium oxide board benefit from the low thermal conductivity of 0.0216 W / mk, which makes it a superior thermal insulator.
RESISTANT
HIGH IMPACT RESISTANCE
Magnesium oxide boards have a flexural strength of approximately 3,000 psi (20,670 kPa) in compression.
The high resistance makes it possible to use it for floors, namely in areas where the impact resistance is greater such as corridors, laboratories and public places .
LIGHTWEIGHT
LIGHTWEIGHT BUT STRONG!
The plates can be folded like paper sheets.
Weight volume: 0,85 - 1.27g/cm3.
PROTECTED HEALTH
HEALTHY AND NON-TOXIC
Its composition makes life of fungi, bacteria, insects, parasites impossible to live. The best solution for areas where there are health and allergies concerns.
ECO-FRIENDLY
ECO-FRIENDLY MATERIAL
MAGNÉSIOPAN® is manufactured from a unique mixture of mineral components, and does not contain any toxic solvent, heavy metals, salts, asbestos, formaldehyde or ammonia.
FIRE-RESISTANT TEST
MGO vs OSB
